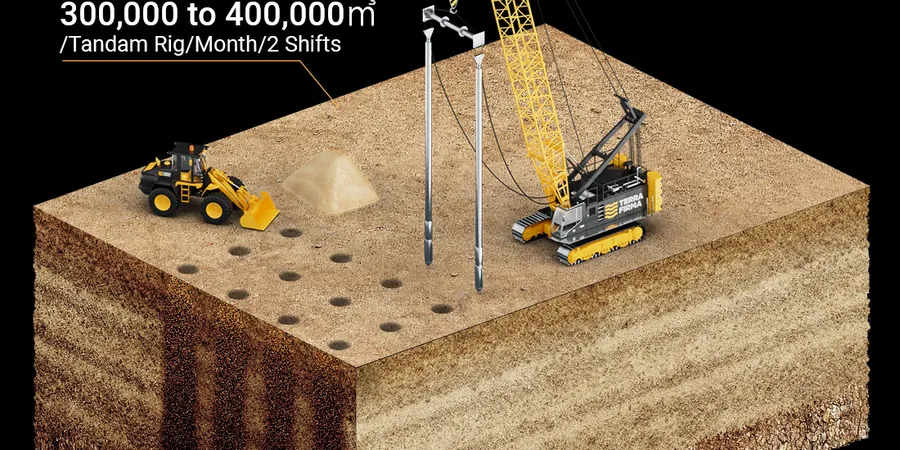

The first thing you notice on a vibrocompaction site in Niagara Falls is the sheer size of the rig—a crawler crane with a massive depth vibrator, or vibroflot, hanging from the boom. That oscillating steel probe, powered by a hydraulic power pack, gets driven into the ground to rearrange loose sand and gravel particles into a denser state. The equipment runs on compressed air or water to keep the hole open while the vibrator does its work, creating a column of compacted material from the bottom up. In a city built atop glacial outwash and lake deposits, where the roar of the falls is a constant backdrop, this heavy machinery is often the difference between a stable foundation and decades of differential settlement. The sandy silts and loose fill scattered across the Niagara region respond exceptionally well to this technique, which is why we bring purpose-built rigs rated for the depth and energy output that local soil profiles demand.
Proper vibrocompaction in the loose sands beneath Niagara Falls can reduce post-construction settlement by over 80% compared to untreated ground.
Methodology and scope
Local considerations
A six-storey mixed-use building off McLeod Road was originally designed on shallow footings, but the geotechnical investigation hit a 4-meter lens of saturated, loose sand at about 3 meters depth—classic Niagara Falls subsoil problem. Without treatment, the differential settlement between the footings overlying the lens and those on denser till would have cracked the superstructure within the first five years. We designed a vibrocompaction grid at 2.4-meter spacing, running the depth vibrator to refusal at 9 meters, well into the underlying competent till. Post-treatment CPT data confirmed the sand lens had been densified to a relative density of 78%, eliminating the settlement differential. The owner avoided a switch to deep piles, which would have added at least CA$180,000 to the foundation cost and delayed the project by three months. That's the real economic argument for vibrocompaction—you're not just buying soil improvement, you're buying schedule certainty and foundation simplicity.
Applicable standards
NBCC 2015 (Division B, Part 4), CSA A23.3:19 (Design of Concrete Structures – Foundation References), ASTM D4253/D4254 (Maximum/ Minimum Index Density and Relative Density), ASTM D6066 (Determining Normalized Penetration Resistance for Evaluating Liquefaction Potential), Canadian Foundation Engineering Manual (CFEM) 4th Edition
Associated technical services
Vibrocompaction Feasibility & Trial Program
We review existing borehole logs and grain size data to confirm the soil is treatable (fines <15%), then run a trial section with variable spacing and energy to build the site-specific calibration curve for your Niagara Falls project.
Production Vibrocompaction Design
Full design package including grid layout, probe type selection, depth targets, amperage/withdrawal rate specs, and sequencing plan. We coordinate directly with the specialty contractor to ensure the rig matches the design intent.
QA/QC & Post-Treatment Verification
Post-compaction CPT testing on a 10m grid to verify relative density targets. We compare pre- and post-treatment tip resistance and sleeve friction, delivering a signed compliance report referencing NBCC and ASTM standards.
Liquefaction Mitigation Assessment
For sites in the Niagara River corridor with high seismic demand, we run post-treatment liquefaction analyses (NCEER/Youd-Idriss method) using the densified CPT data to confirm that the factor of safety exceeds the regulatory minimum.
Typical parameters
Frequently asked questions
What does vibrocompaction design cost for a typical lot in Niagara Falls?
For a standard commercial or mid-rise residential lot in Niagara Falls, vibrocompaction design and field verification typically runs between CA$1,730 and CA$7,870, depending on treatment depth, grid density, and the number of post-treatment CPT soundings needed. A small single-lot project with shallow treatment and four verification soundings sits at the lower end; a larger industrial site requiring deep compaction and a dense QA grid moves toward the upper end. The design fee itself is a fraction of the overall ground improvement cost but is essential to avoid over-treatment or leaving untreated zones that could cause problems later.
How do you confirm the vibrocompaction actually worked on our site?
We run a series of CPT soundings on a grid pattern after the vibroflot has completed its passes, then compare the tip resistance (qc) and friction ratio against the pre-treatment baseline. The target is a relative density of 70% or higher, derived from the calibration trial. We also check that the improvement is uniform across the treatment zone—no weak pockets. The data gets compiled into a report that references ASTM D6066 and CFEM guidelines, giving you and the building official documented proof that the ground meets the design assumptions for bearing capacity and settlement.
What soil types in Niagara Falls are suitable for vibrocompaction?
Vibrocompaction works best in granular soils with less than 15% fines passing the No. 200 sieve—think clean sands, gravelly sands, and some silty sands. The glacial outwash and alluvial deposits common across Niagara Falls are often ideal candidates. It does not work in cohesive clays or silts with high plasticity; those require different techniques like stone columns or rigid inclusions. We always run a grain size analysis first to confirm suitability before committing to a full design. More info.
